TERA T63
TECHNICAL SPECIFICATION
Engine Configuration
Drivetrain Layout
Transmission
Clutch System
Power
Fuel Tank
Dry Weight
Frame and Body Parts
Aeroparts
Cockpit
Door-style
Electronic Control Unit (ECU)
Dash
Power Distributor Module
: Inline-4, 2.0 liter direct injection turbocharger with dry sump system
: Longitudinal mid-engine, RWD
: 6 speed Sequential transaxle with paddle shift
: Dry clutch plate
: Maximum Power: 550 hp @ 5000 RPM, Maximum Torque: 650 Nm @ 4500 RPM
: 80 liters with FIA-compliant polyester foam
: 890 kgs / 1,984 lbs
: Tubular (chromoly steel) with full carbon prepreg body parts
: Downforce-enhanced design carbon reinforced rear wing with shark fin
: Full carbon reinforce
: Gull-wing with quick release system
: MoTeC M142
: MoTeC C125 display
: ECU master and control switch
Engine Configuration : Inline-4, 2.0 liter direct injection turbocharger with dry sump system
Drivetrain Layout : Longitudinal mid-engine, RWD
Transmission : 6 speed Sequential transaxle with paddle shift
Clutch System : Dry clutch plate
Power : Maximum Power: 550 hp @ 5000 RPM, Maximum Torque: 650 nm @ 4500 RPM
Fuel Tank : 80 liters with FIA-compliant polyester foam
Dry Weight : 890 kgs / 1,984 lbs.
Frame and Body Parts : Tubular (chromoly steel) with full carbon prepreg body parts
Aeroparts : Downforce-enhanced design carbon reinforced rear wing with shark fin
Cockpit : Full carbon reinforce
Door-style : Gull-wing with quick release system
Electronic Control Unit (ECU) : MoTeC M142
Dash : MoTeC C125 display
Power Distributor Module : ECU master and control switch
SUSPENSION SYSTEM
FRONT
Double wishbone with heave control system (HCS)
and adjustable anti-roll bar
REAR
Double wishbone with heave control system (HCS)
and adjustable anti-roll bar
Braking System
FRONT
AP Racing Pro 5000R
6-pistons, 370 mm-diameter disc brake
REAR
AP Racing Pro 5000R
4-pistons, 350 mm-diameter disc brake

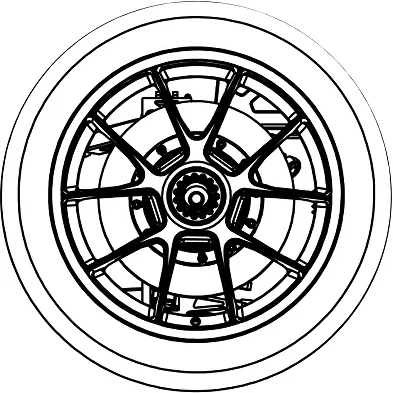

WHEEL & TYRE SIZE
WHEEL
Forge aluminum wheel 18” x 10” width
center lock wheel nut
TYRE SIZE
280/660R18 (Racing slick tyre)
Steering System
Racing Pedal
Fire Extinguisher
Seat
Lighting
: Rack and pinion w/o power assist
: Tilton 600 series with brake bias adjuster
: FIA-approved electrically activated fire extinguisher system
: Carbon reinforced with FIA-approved 6 point harness
: FIA Rain lights
Steering System : Rack and pinion w/o power assist
Racing Pedal : Tilton 600 series with brake bias adjuster
Fire Extinguisher : FIA-approved electrically activated fire extinguisher system
Seat : Carbon reinforced with FIA-approved 6 point harness
Lighting : FIA Rain lights
DIMENSION
WIDTH : 1,796 mm
HEIGHT : 1,215 mm
LENGHT : 4,568 mm
STEERING SYSTEM : 70 mm
RACING PEDAL : 2,750 mm
FIRE EXTINGUISHER : 1,490 mm
